Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
Model Number:
FG500,2FC-3000

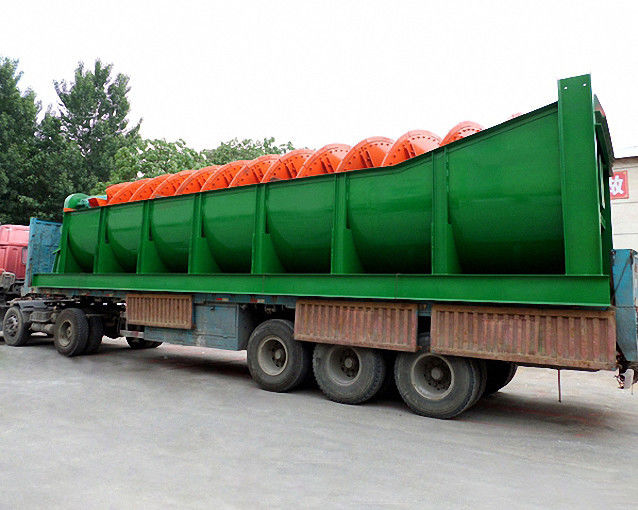

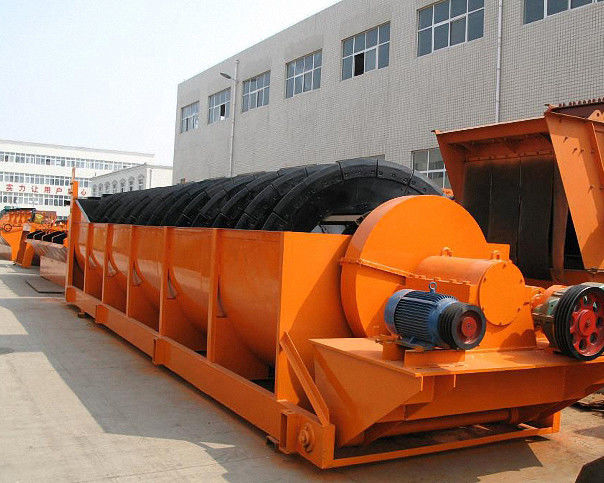

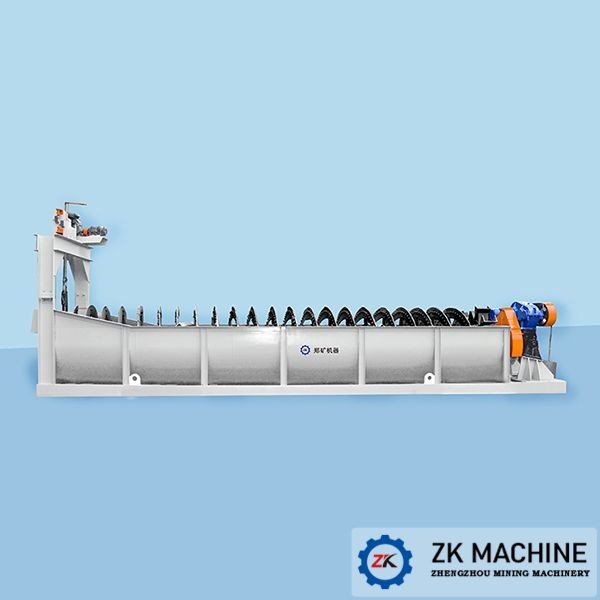

Spiral Classifier for Ore Dressing Plant / Iron Ore Beneficiation Spiral Classifier
Spiral Classifier also can be called spiral separator, screw classifier or screw separator. It is widely used in the concentrator and make up a closed-loop with ball mill.
We produce high weir type classifier, single and double spiral type classifier and immersed single and double spiral classifiers. Our spiral classifiers are widely used in the separation of ore in closed circuits with ball mills for the grading of ores and metal ore-dressing and other operations.
This product is featured with simple structure, reliable working condition and convenient operation. Because different grains have different specific gravity and sedimentation rates in liquid, this product allows the fine ore to float in the water, while coarse ore sinks to the bottom.
Iron Ore Beneficiation Spiral Classifier Working Principle
The principle used in spiral classifier is that different sizes of crushers have different weights, so their sedimentation rates are also different. In the working process, fine ore grains float on the surface of water, and rough grains sink on the bottom of the cell. Screw grader can classify materials from mill, and then bring the rough grains to the entrance mouth of mill with the help of flights, and discharge the fine ore grins though pipe. The pedestal spiral classifier is made of box iron. The body is made of welding steel plates. The faucet and spindle nose of screw shaft are made of pig iron set which is wear-resisting durable. The take-up sets include two types power-driven and manual operation.
Our Advantage of Spiral Classifier for Ore Dressing Plant
1. Can be very convenient to control the content of sand powder and to meet users’ requirements.
2. Spiral classifier has advanced technology, simple process, particularly suitable for large and medium-sized sand making production line.
3. The content of powder with size of 0.00--0.75mm is between 2%-15% and can be adjusted.
4. The quality of powder is easy to control. The adjustment of fine is convenient, flexible, and reliable.
Spiral Classifier Specifications
| model | Spiral dia(mm) | Spiral speed(r/min) | /output | Motor power | ||
Circulating load(t/24h) |
Overflow quantity(t/24h) |
Lift/lower (kw) |
Drive(kw) | |||
| High-wear single spiral classifier | ||||||
| FG-5 | φ500 | 8.5-15.5 | 143-261 | 32 | 1.1 | |
| FG-7 | φ750 | 4.5-9.9 | 256-564 | 65 | 3 | |
| FG-10 | φ1000 | 3.5-7.6 | 473-1026 | 85 | 5.5 | |
| FG-12 | φ1200 | 5,6,7 | 1170-1600 | 155 | 2.2 | 5.5 |
| FG-15 | φ1500 | 2.5,4,6 | 1140-2740 | 235 | 2.2 | 7.5 |
| FG-20 | φ200 | 3.6,5.5 | 3890-5940 | 400 | 3 | 11,15 |
| FG-24 | φ2400 | 3.64 | 6800 | 580 | 3 | 15 |
| FG-30 | φ3000 | 3.2 | 11650 | 893 | 4 | 22 |
| High-wear double spiral classifier | ||||||
| 2FG-12 | φ1200 | 5,6,7 | 2340-3200 | 310 | 2.2x2 | 5.5x2 |
| 2FG-15 | φ1500 | 2.5,4,6 | 2280-5480 | 470 | 2.2x2 | 7.5x2 |
| 2FG-20 | φ2000 | 3.6,5.45 | 7780-11880 | 800 | 3x2 | 22,30 |
| 2FG-24 | φ2400 | 3.67 | 13600 | 1160 | 3x2 | 30 |
| 2FG-30 | φ3000 | 3.2 | 23300 | 1785 | 4x2 | 40 |
| submerged single spiral classifier | ||||||
| FC-12 | φ1200 | 2.5,4,6 | 1170-1630 | 120 | 2.2 | 7.5 |
| FC-15 | φ1500 | 2.5,4,6 | 1140-2740 | 185 | 2.2 | 7.5 |
| FC-20 | φ2000 | 3.6,5.5 | 3890-5940 | 320 | 3 | 11,15 |
| FC-24 | φ2400 | 3.64 | 6800 | 455 | 4 | 18.5 |
| FC-30 | φ3000 | 3.2 | 11650 | 705 | 4 | 22 |
| submerged double spiral classifier | ||||||
| 2FC-12 | φ1200 | 3.8,6 | 1770-2800 | 240 | 2.2x2 | 7.5x2 |
| 2FC-15 | φ1500 | 2.5,4,6 | 2280-5480 | 370 | 2.2x2 | 7.5x2 |
| 2FC-20 | φ2000 | 3.6,5.5 | 7780-11880 | 640 | 3x2 | 22,30 |
| 2FC-24 | φ2400 | 3.67 | 13700 | 910 | 3x2 | 30 |
| 2FC-24 | φ2400 | 3.67 | 13700 | 910 | 4x2 | 37 |
| 2FC-30 | φ3000 | 3.2 | 23300 | 1410 | 4x2 | 45 |
FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.
Q: How to maintain the machine?
A: Check the connection part and clean the screen frame regularly.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
