Place of Origin:
China
Brand Name:
ZK
Model Number:
ZKL

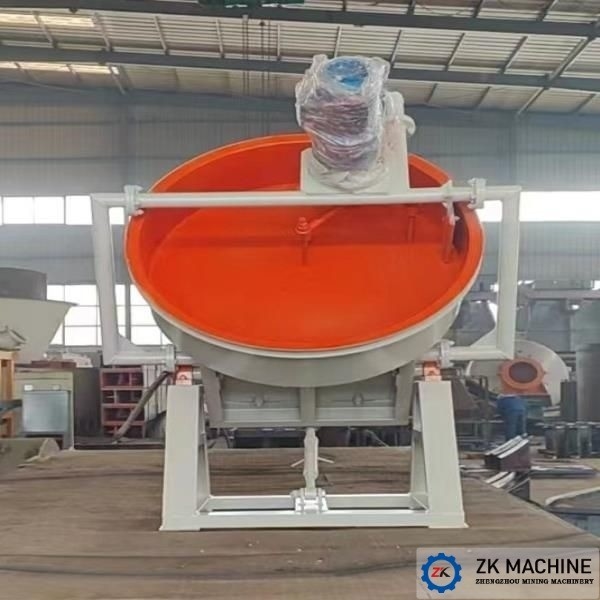

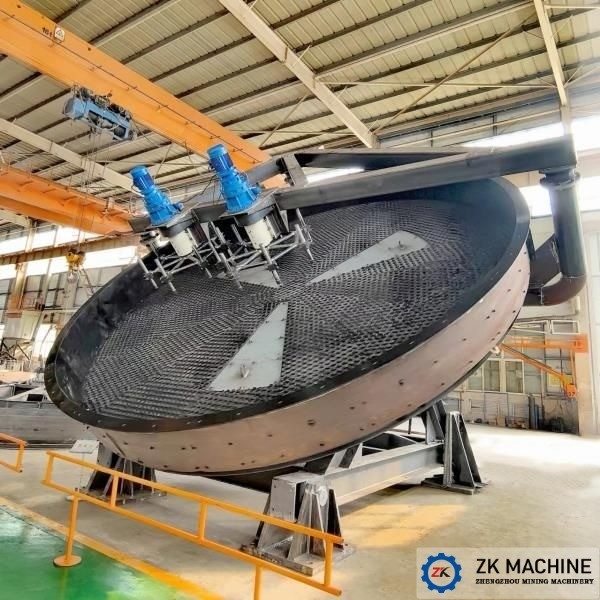

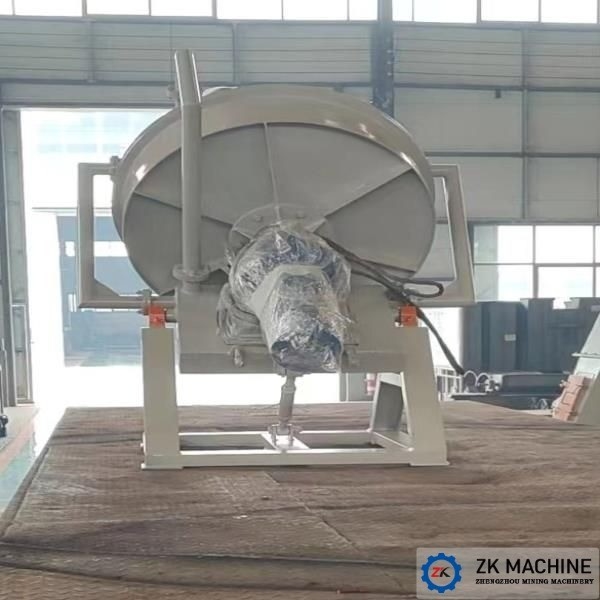

The large-scale disc pelletizing machine developed by Henan Zhengzhou Mining Machinery Co., Ltd. is an excellent technological product. It has features of smooth operation, high pelletizing quality, low energy consumption and easy maintenance, and has excellent high reliability. Compared with the traditional ball making machine, it successfully avoids the instability and vibration problems caused by the cantilever shaft support structure. The innovative design of this product provides a reliable and efficient solution for phosphogypsum, cement retarder, steel pelletizing and other industries, making it the preferred equipment in the field of pellet manufacturing.
1. The maintenance is easy, and there is almost no daily maintenance work during the use of the equipment. The maintenance parts of the 7.5-meter pelletizer are about 4.3 tons. Compared with traditional pelletizing machines, the maintenance amount is greatly reduced and there are fewer failures. Even the time required to replace the core components is very short, usually in about three to five days.
2. Adopting a fully enclosed internal meshing gear transmission system, the transmission gear is isolated from external dust, which effectively protects the tooth surface from wear and tear from dust and pollution, reduces the failure rate, prolongs the service life of the gear, and ensures the continuous and stable operation of the equipment.
3. The disc body of the pelletizing disc adopts plane support to make it run smoothly without vibration.
4. The center distance and clearance of the large and small gears are guaranteed by machining, so the transmission precision is high. Compared with domestic traditional pelletizers, the gap needs to be manually adjusted. If the gap is too large, too small or too biased, it will affect the transmission accuracy and service life. Some traditional pelletizers even need to adjust the gap every two months.
| Attribute | Value |
|---|---|
| Product Name | Granulation Production Line |
| Model | Carbon Powder Disc Granulator, Clay Disc Granulator |
| Diameter | 1000-4200(mm) |
| Power | 15-155(kW) |
| Warranty | 1 Year |
| Equipment Condition | New |
| Color | Customized |
| Voltage | 380V |
| Features | High Granulation Rate |
| Service | Design, Manufacturing, Sales |
| Business Scope | Design, Manufacturer, Onsite Guidance |
| Pelletization Rate | ≥ 70% |
| Model | Dia(mm) | Height(mm) | Slope(°) | Speed(r/min) | Main Drive Motor Power(kW) | Scraper Motor Power(kW) | Weight (t) |
|---|---|---|---|---|---|---|---|
| PQ50 | 5000 | 600 | 43~53° | 6~9 | 75 | 5.5×2 | 20 |
| PQ55 | 5500 | 650 | 43~53° | 5.7~8.5 | 90 | 5.5×2 | 33.5 |
| PQ60 | 6000 | 650 | 43~53° | 5.7~8.5 | 110 | 5.5×2 | 36.5 |
| PQ70 | 7000 | 650 | 43~53° | 5.1~7.9 | 185 | 5.5×3 | 51 |
| PQ75 | 7500 | 650 | 43~53° | 5.1~7.9 | 200 | 5.5×3 | 55.6 |
Applicable materials: phosphogypsum, cement retarder, iron powder, steel ball, clay powder etc.
Application field: Mainly used for granulation of clay powder, phosphogypsum, cement retarder pellets and steel pellets.
After more than 60 years of development, ZK Corp already has been growing up to a comprehensive company with strong ability of the whole system researching and designing on process technology and equipment manufacturing in the fields of building materials, mining, metallurgy, environmental protection etc.
1. Building materials process for: Light Expanded Aggregate (LECA), Ceramsite Sand, Oil Fracturing Proppant, Refractory, Powder, Lime, Cement Production etc.
2. Metallurgical process for: Magnesium Metal Production Process (Calcination, Pelletizing, Reduction, and Refining);
3. Calcination/Sintering Process for :Dolomite, Limestone, Magnesite, Bauxite, Kaolin, Filter cake from Sugar Plant and Paper Plant etc;
4. Environmental protection process for:Hazardous Solid and Waste Solid Treatment (sludge, shale, chrome mud, red mud, fly ash, coal gangue, etc.), Dedusting and Flue Gas Purification etc;
