Place of Origin:
China
Brand Name:
ZK
Certification:
CE
Model Number:
600×700-3200×4600

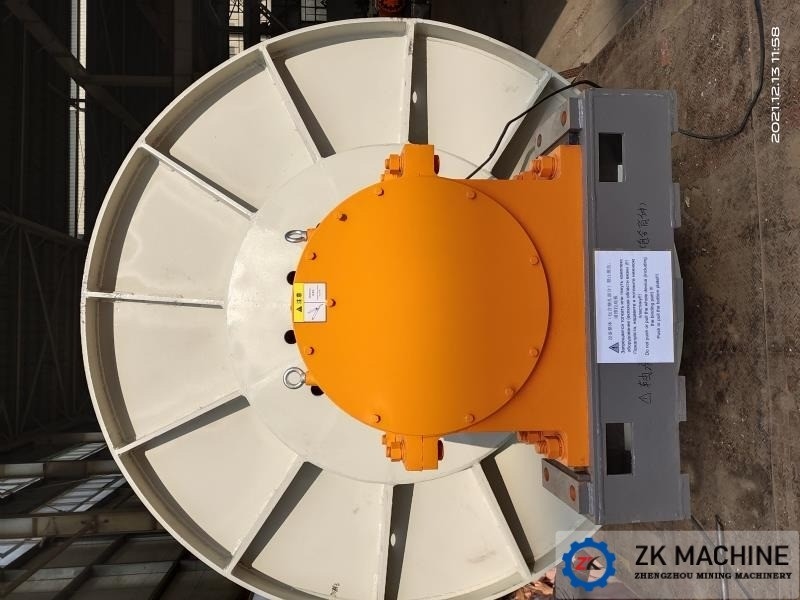

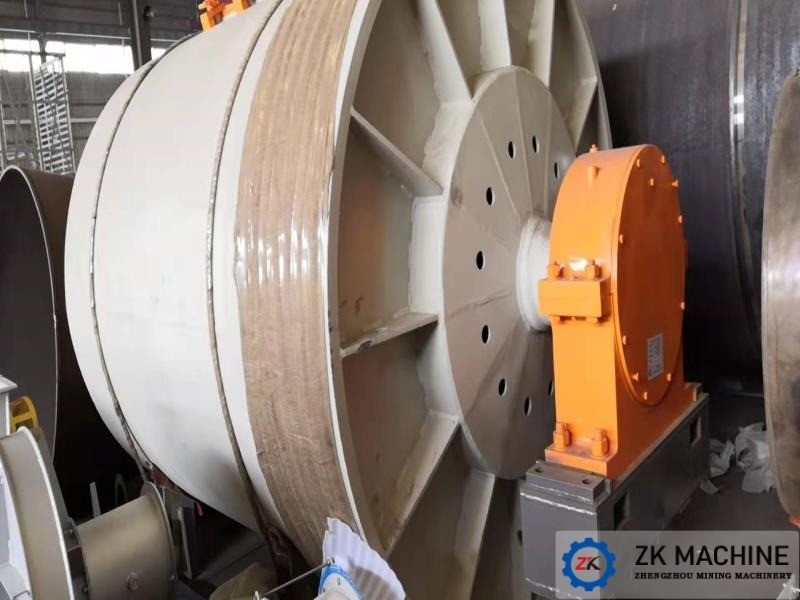

Ceramic ball mill is also called Intermittent ball mill/Batch ball mill. Ceramic ball mill is mainly used for mixing and grinding of ceramic raw materials, mud, kaolin and glaze materials etc. It is widely applied in industrial production of high fine grinding materials. The fineness of products is uniform and power is saved. Ceramic ball mill grinding has dry and wet ways, of which the dry grinding can produce ultra-fine powder with the fineness of 1000 mesh. The machine can adopt different types of lining plates according to production needs to meet different needs.
Working principle of Ceramic Ball Mill:
The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material.
After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
1. The type of lining board can be changed: according to different materials, different lining boards can be used to meet different needs;
2. Low price: Compared with other ball mills, ceramic mills have low prices and quick cost recovery;
3. Small land area required: Compared with other mills, the length of the ceramic mill is short, so it occupies a small area;
4. Stable operation: The transmission of the main engine adopts a closed gear, so the stability of the transmission is enhanced.
Product Customization Services for the Wet Intermittent Ceramic Ball Mill
Brand Name: ZK
Place of Origin: China
Rotating Speed: 33-42(r/min)
Ball Mill Cylinder: 1200mm-3600mm
Onsite Service: Supply
Service: Under Supervision Of Our Engineer
Application: Sand, stone, mortar, sand, etc., ceramic pottery materials such as alumina/sintered alumina
| Model | Loading Capacity (tons/time) | Rotating Speed (r/min) | Reference Power (kW) |
|---|---|---|---|
| 600×700 | 0.05 | 50 | 2.2 |
| 800×600 | 0.075 | 42 | 3 |
| 900×1200 | 0.2 | 38.5 | 5.5 |
| 1300×1500 | 0.5 | 33 | 7.5 |
| 1500×1800 | 1.2 | 28.5 | 11 |
| 1800×2000 | 1.5 | 24 | 15 |
| 2600×2800 | 5 | 16.5 | 37 |
| 3000×3800 | 10 | 14.5 | 57.2 |
| 3200×4600 | 15 | 13.5 | 75 |
| Ceramic, silica, rubber, metal (supporting power will vary depending on the material of the liner and the grinding material) | |||
